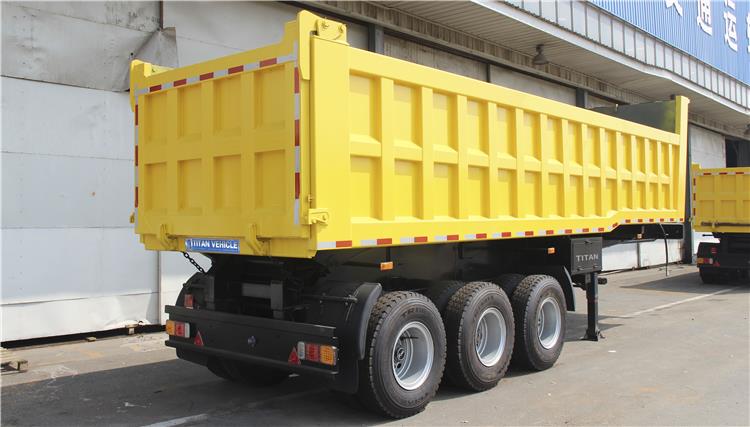

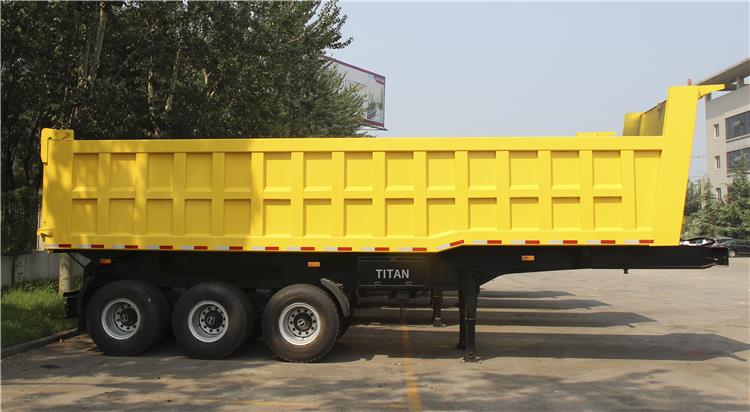

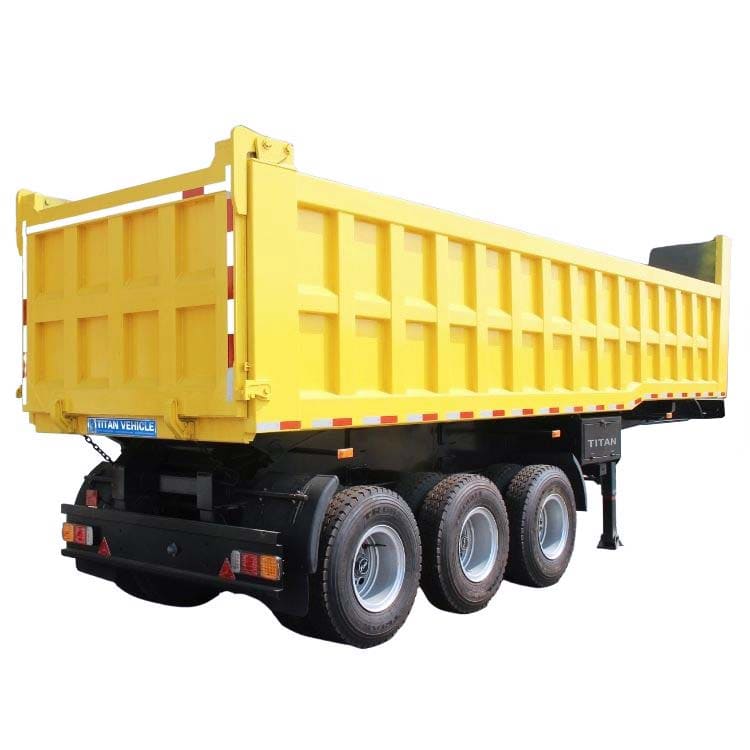

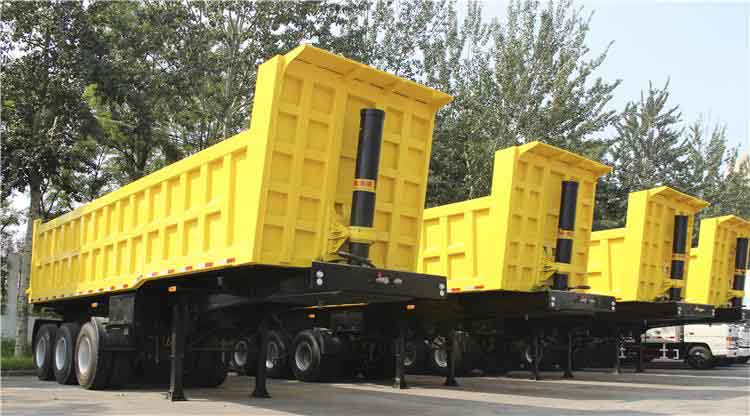

Tri Axle Semi Dump Trailer

Semi dump trailer for sale:

Tri axle 80 ton semi dump trailer adopt high strength steel to make it durable when load the sand or small stones or rocks.

Semi dump trailer equipped with reliable hydraulic HYVA cylinder. We can customize the semi dump trailer according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

Tri Axle Semi Dump Trailer Capacity 80 Ton for Sale

Tri Axle Semi Dump Trailer Capacity 80 Ton for Sale

Specification of semi dump trailer capacity:

Dimension: 9300mmx2500mm x3700mm (inside dimension)

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 38 ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 3 axles, 13T/16T, FUWA / BPW Brand

Rim: 8.0-20 or 9.00-20

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
