The 6 axle dump trailer the accessories all used international famous brand and other China famous brand, the configurations adopts the best, and the main beam material also used high-strength steel, these make the 6 axle dump truck increase longer serivce life.
We provide the 6 axle dump truck trailer is an ideal transport tool.
The 6 axle dump trailer the accessories all used international famous brand and other China famous brand, the configurations adopts the best, and the main beam material also used high-strength steel, these make the 6 axle dump truck increase longer serivce life. And our dump truck trailer can bring more benefits to customers, such as: improve work efficiency, save labor cost and save unnecessary maintenance costs.

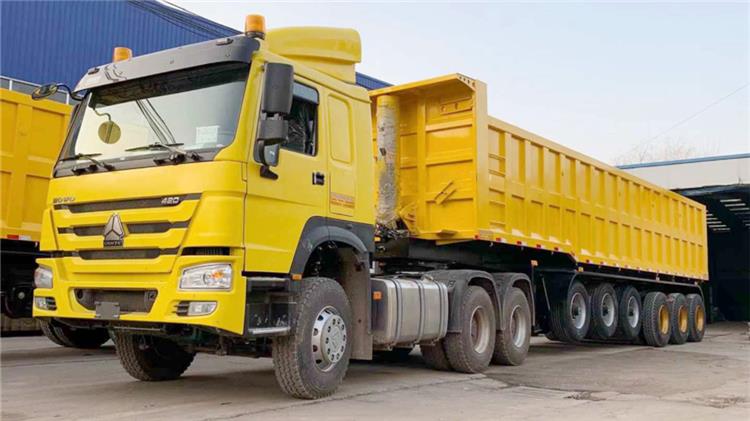

6 Axle Heavy Duty Dump Truck Trailer for Sale in Ghana
6 Axle Heavy Duty Dump Truck Trailer for Sale in Ghana
Overall dimension: 12000mm * 2600mm *1800mm
Volume: 45CBM
Axles: 6 axles
Tire: 24 units
Suspension: Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
King pin: 90#
Landing gear: JOST
Brake system: WABCO
Electrical system: 24V, LED lights
The 6 axle dump truck trailer train is mainly composed of a tractor and a semi-trailer. The tractor is connected by a saddle and a semi-trailer to form a semi-trailer train. The semi tipper trailer hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.
The high-pressure oil output by the gear pump enters the poppet valve through the high-pressure oil pipe.
The lift valve sends high pressure oil to the oil cylinder or discharges it into the hydraulic oil tank under the control of the air control valve, thereby achieving the functions of lifting, stopping and lowering the end dump trailer hydraulic oil cylinder.
