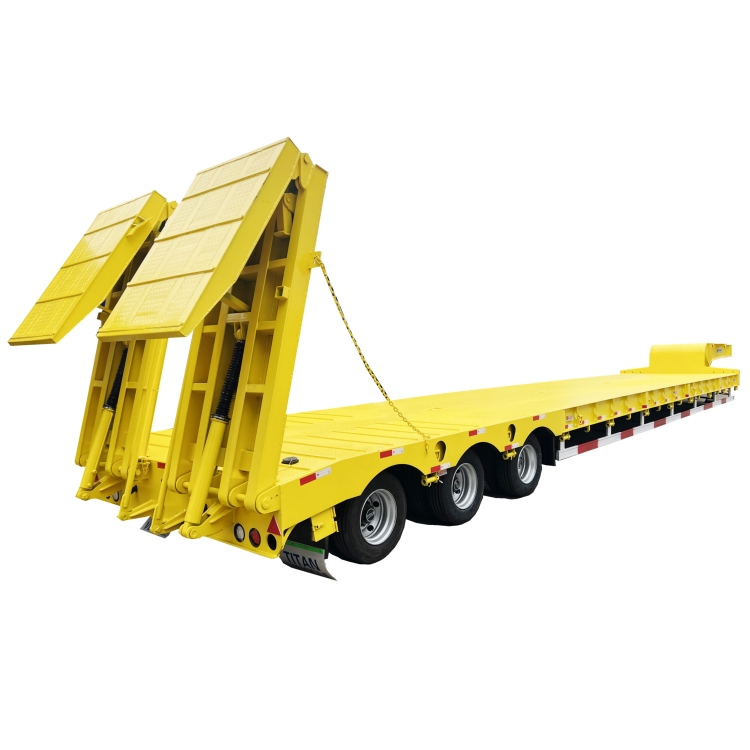

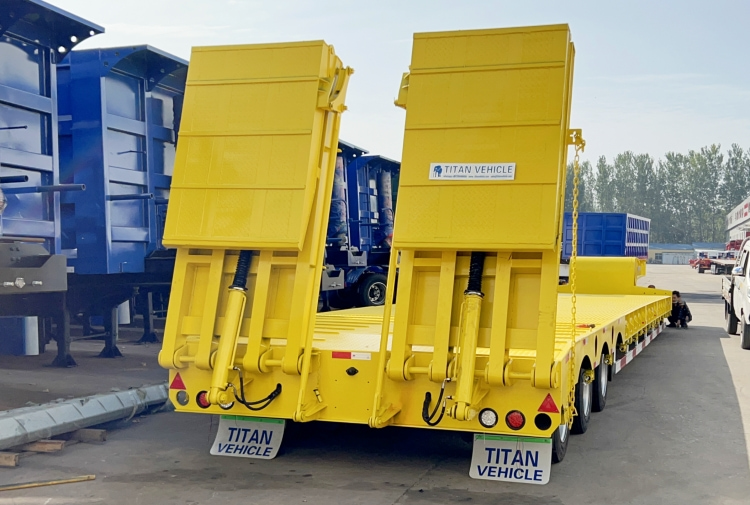

The 3 axle drop deck trailer ramp is welded with HG60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the ramp without deformation or damage.

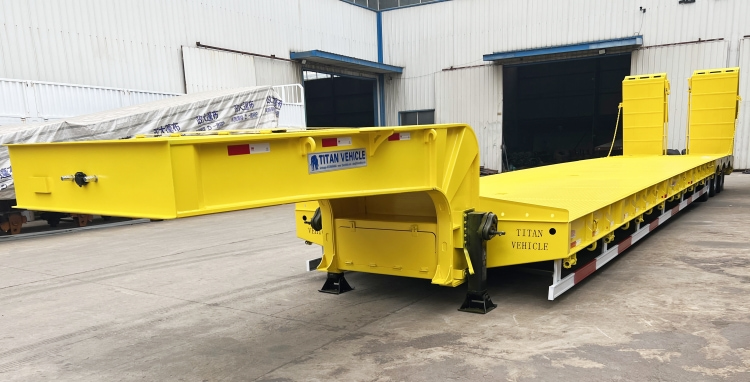

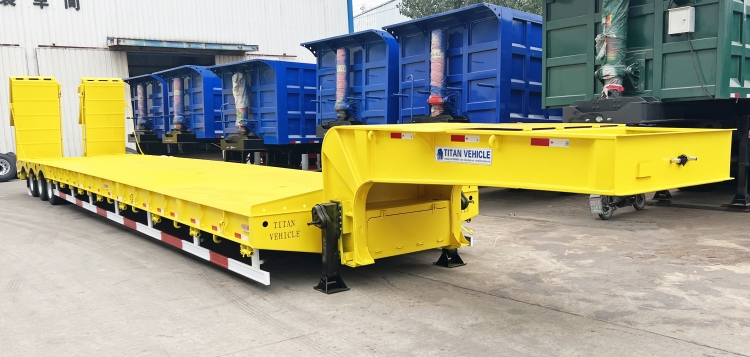

60 ton drop deck trailer main beam gooseneck lower has a reinforcement, gooseneck double plat. The low deck trailer in the heavy load when the deformation range is very small, better to use
The 3 axle drop deck trailer side beam is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use. Anti - turbulence ability increased about 3 times.

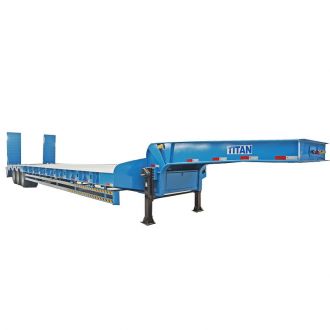

3 Axle 60 Ton Low Drop Deck Semi Trailer for Sale in Congo
3 Axle 60 Ton Low Drop Deck Semi Trailer for Sale in Congo
3 Axle 60 Ton Low Drop Deck Semi Trailer for Sale in Congo
3 Axle 60 Ton Low Drop Deck Semi Trailer for Sale in Congo
3 Axle 60 Ton Low Drop Deck Semi Trailer for Sale in Congo
Overall dimension: 15800mm * 3000mm *1700mm
Loading capacity(T): 60-80T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12 units, 11.00R20/12R22.5
Suspension: Mechanical suspension
Leaf Spring: 90(W)mmx13(Thickness)mmx10 layers
King pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand/TITAN brand
Bottom Platform: 5mm thick checkered plate

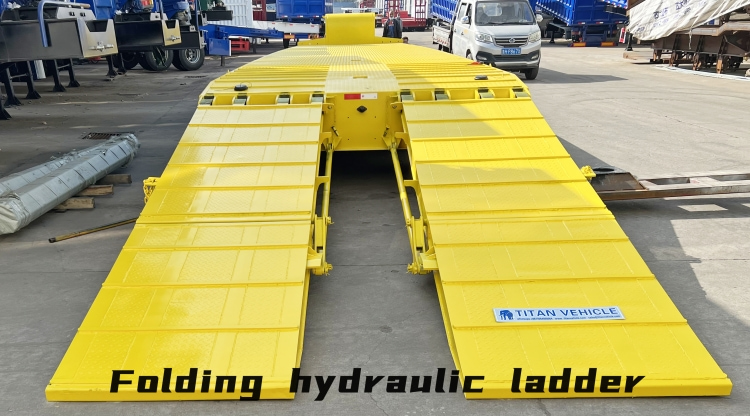

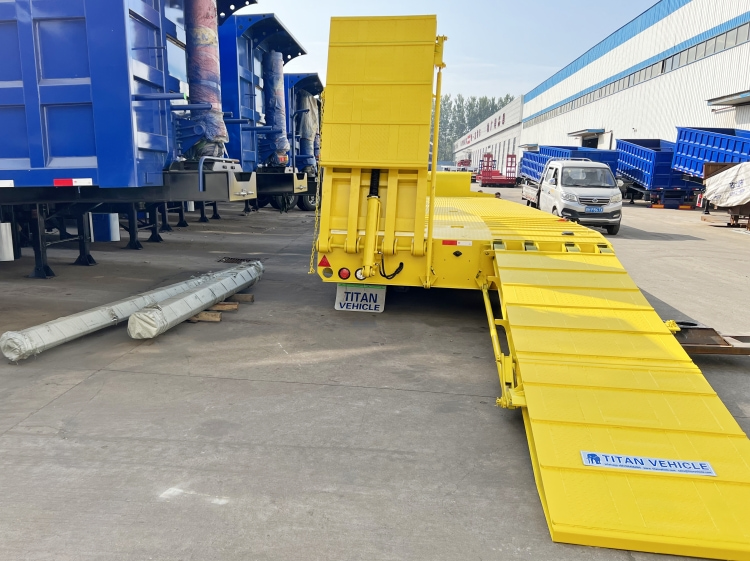

Ramp: Folding hydraulic ladder
Provide with standards products,
service, accessories, training
and technical support.
